Railway Equipment Ⅱ

Hydraulic Lifting And Lining Machinery Series

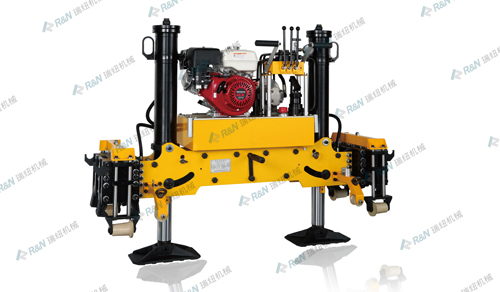

YQB-6.5 Hydraulic Track Lifting and Lining Machine

Product Description:

YQB-6.5 Hydraulic track lifting and lining machine is used for lifting and lining operation during the railway’s repair time . The parts of machine are made of high-strength aluminum alloy, reducing the overall weight.

The main technical parameters

Model                                           YQB-6.5

Engine power (KW)                      6.5（9HP）

Maximum thrust（kN）               147×2

Maximum lifting range(mm)       700

Maximum lining range(mm)       350

Weight（kg）                               450

Railway Equipment Ⅱ

Hydraulic Lifting And Lining Machinery Series

YQD Hydraulic Track Lifting Tool

Product Description:

It is applied to lift rails when the railways need to be maintenance and repair. It has two-speed structure which make the wheels approaching the rail base quickly. Bottoms and some parts made with super-hard alloy, reduce the overall weight.

The main technical parameters:

Model                                          YQD-196A      YQD-245

Rated lifting force (kN)                   196                 245

Maximum lifting Quantity (mm)    120                 120

Weight (kg)                                      23.5                 28

Railway Equipment Ⅱ

Hydraulic Lifting And Lining Machinery Series

YQ-88 A Hydraulic Track (high-speed) Lining Tool

Product Description:

It is used when replace shims under the high-speed railway or change shims to correct the rail. This tool is safe, energy; weight light and easy to use. The lifting quantity can be controlled.

The main technical parameters

Model                                                     YQ-88A

Rated lifting force (kN)                               88

Maximum lifting Quantity (mm)                60

Handle operating torque （Nm）             220

Weight (not including handles)（kg）       8

Initial height                                                25

Railway Equipment Ⅱ

Hydraulic Lifting And Lining Machinery Series

YQ-88B Hydraulic Track (high-speed) Lining Too

Product Description:

It is used when replace shims under the high-speed railway or change shims to correct the rail. This tool is safe, energy; weight light and easy to use. The lifting quantity can be controlled.

The main technical parameters

Model                                                      YQ-88B

Rated lifting force (kN)                           88

Maximum lifting Quantity (mm)            32

Handle operating torque(Nm)               220

Weight (not including handles)(kg)      65

Initial height                                             4

Railway Equipment Ⅱ

Hydraulic Lifting And Lining Machinery Series

GQD (x) A Hydraulic Track (Sleeper Plate) Lifting Tool

Product Description:

It is applied to lift the sleeper plate during the placing sands operation. It has two-speed structure which can make fast rise when no load or light load; besides, it can be used in installing speed turnouts.

The main technical parameters:

Model                                             GQD(X)

Rated lifting force (kN)                  147

Maximum lifting Quantity (mm)   220

Weight (kg)                                     27

Railway Equipment Ⅱ

Hydraulic Lifting And Lining Machinery Series

GQD (s) Hydraulic Track (Sleeper Plate) Lifting Tool

Product Description:

It is used when replace the board of rail sleeper shims to correct the rail.

The main technical parameters:

Model                                              GQD(S)

Rated lifting force (kN)                   78

Maximum lifting Quantity (mm)    52

Weight(kg)                                      10.5

Railway Equipment Ⅱ

Hydraulic Lifting And Lining Machinery Series

GQD-118 Hydraulic Track (Sleeper Plate) Lifting Tool

Product Description:

It is working on placing sands and base plate, more suitable for use in the rail tunnel.

The main technical parameters:

Model                                              GQD-118

Rated lifting force (kN)                    118

Maximum lifting Quantity (mm)      85

Weight  (kg)                                     20.5

Railway Equipment Ⅱ

Hydraulic Lifting And Lining Machinery Series

YQ (q)-147 Hydraulic Track (bridge) Lifting Tool

Product Description:

The machine is used to lift the rail when open bridges in maintenance.It is light weight ,easy to operate and auto unloading.

The main technical parameters:

Model                                            YQ(q)-147

Rated lifting force (kN)                  147

Maximum lifting Quantity (mm)   100

Weight(kg)                                      14

Railway Equipment Ⅱ

Hydraulic Lifting And Lining Machinery Series

YQBD Hydrostatic Track Lifting and Lining Tool

Product Description:

It is new type equipment that is used on the railway line’s maintenance and repairing. The most important feature of this machine is that is a dual-purpose machine what meet the needs of the lifting work of the line, as well as satisfy lining operations.

The main technical

Model                                   YQBD-196A    YQBD-245A   YQBD-294

Rated lifting force (kN)                196                245              294

Maximum lifting Quantity (mm)     130                135              135

Rated lining force (kN)                 115                145              173

Maximum lining Quantity (mm)      90                  95                95

Weight(kg)                                  21                  23                23

Railway Equipment Ⅱ

Hydraulic Lifting And Lining Machinery Series

YBD Hydraulic Lining Tool

Product Description:

It is suitable for the railway line maintenance and repair work. The machine has planar four-bar mechanism what can increase the lining quantity, while the lifting quantity is low. During the lining operation, will not cause damage to the track.

The main technical parameters:

Model                                            YBD-196A   YBD-245A

Rated lining force (kN)                      196              245

Maximum lining Quantity(mm)        105              110

Weight(kg)                                          21                23

Railway Equipment Ⅱ

Hydraulic Lifting And Lining Machinery Series

GJT-98 Hydraulic Gauge Regulator

Product Description:

It is applied to rail operations and diversed position of the sleepers, can be determined using a single or double machine according to the operation, can be used in the maintenance and laying new lines. It is convenient, flexible and labor-saving.

The main technical parameters:

Model                                        GJT-98

Rated adjusting force（kN）     98

Adjusting Quantity(mm)            45

Weight(kg)                                  12

Railway Equipment Ⅱ

Hydraulic Lifting And Lining Machinery Series

GBD-I Hydraulic Track (Sleeper Plate) Lining Tool

Product Description:

This tool is suitable for lining operations on sleeper plate railway, often two tools work at same cross tie.

The main technical parameters:

Model                                            GBD-I

Rated lining force (kN)                   98

Maximum lining Quantity (mm)    62

Weight (kg)                                     9.5
